Fusing Machine

• Automatic Grade
• Automatic

• Capacity
• Up to 4 beds simultaneous

• Color Management
• Other, Digital Control

• Computerized
• Yes

• Dimension (L*W*H)
• 1200*1000*1400 mm

• Ink Type
• Other, Heat Transfer Ink

• Material
• Steel Body with Coated Panels

• Plate Type
• Other, Flat Heated Plate

• Power
• 1500 Watts

• Print Direction
• Other, Bidirectional

• Printing Speed
• High Speed, 20 min cycle

• Size
• Medium Industrial

• Type
• Four Bed Pneumatic Heat Transfer Press Fusing Machine

• Weight (kg)
• Approx 180 kg

• Width
• 500-1000 mm

• Working Temperature
• 200 deg C

• Dimension (L*W*H)
• 16 X 20,6 X 6,3 X 4,12 X 15

• Power
• 3 kW

• Product Type
• Other, Heat Transfer

• Usage & Applications
• T-Shirt Label Pressing

• Voltage
• 230 V

• Accuracy
• 0.1C (temperature) / 1s (timer)

• Color
• Blue and White

• Control System
• Other, Digital Controller with LED Display

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 1100 mm x 850 mm x 1300 mm

• Drive
• Electric Motor-Driven

• Features
• Double sliding bed, digital temperature control, auto alarm, timer

• Frame Type
• Heavy Duty Steel

• Frequency
• 50/60 Hz

• Lubricating System
• Manual Lubrication

• Machine Type

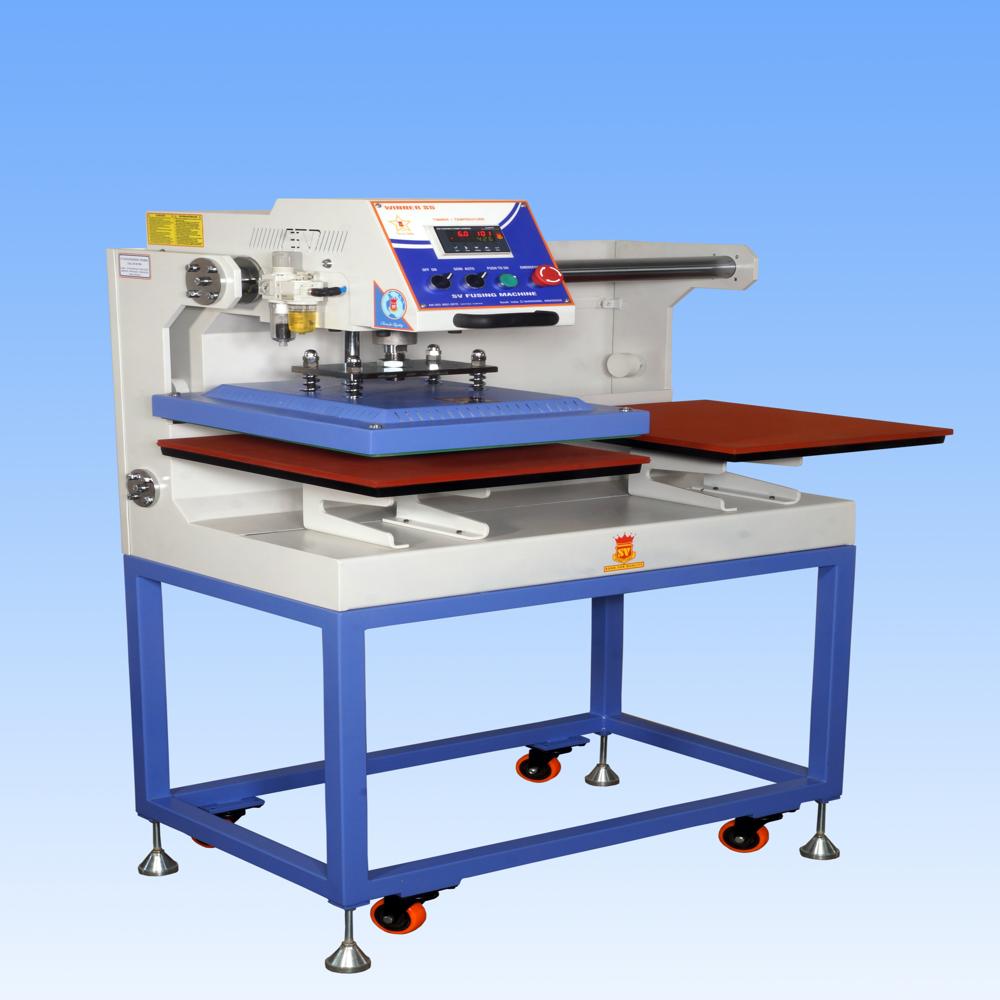

• Double Bed Sliding Fusing Machine

• Model No
• SD-FM-2000

• Motor Power
• 0.5 HP

• Noise Level
• < 65 dB

• Operating Temperature
• 0C to 250C (Adjustable)

• Operating Type
• Other, Semi-Automatic

• Power
• 3 - 6 kW (varies per model)

• Power Rating
• 4 kW

• Power Source
• Other, Electric

• Pressure
• 0.5-0.7 MPa (Adjustable)

• Product Type
• Other, Sliding Double Bed Fusing Machine

• Production Capacity
• Up to 600 pieces/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Heat Press Fusing Technology

• Usage & Applications
• Garment Manufacturing, Fabric Fusing, Interlining Operations

• Voltage
• 220V / 380V

• Weight (kg)
• 150 kg

• Accuracy
• Uniform Heating, Precise Fusing

• Color
• White with Multicolor Labels

• Control System
• Other, Digital Control Panel

• Cooling System
• Natural Cooling

• Dimension (L*W*H)
• Approx. 800 x 400 x 1000 mm

• Drive
• Pneumatic Drive

• Features
• Dual Bed, Precise Timer, Uniform Pressure, Digital Display

• Frame Type
• Rigid Steel Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Pre-lubricated, Low Maintenance

• Machine Type
• Fusing Machine

• Model No
• DBYLF-2024

• Motor Power
• 1/4 HP

• Noise Level
• Low (Below 65 dB)

• Operating Temperature
• Up to 2200C

• Operating Type
• Other, Semi-Automatic

• Power
• 1500 W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Adjustable Pneumatic Pressure

• Product Type
• Other, Double Bed Yoke Label Fusing Machine

• Production Capacity
• 500-700 Pieces per Hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Pneumatic Fusing Technology

• Usage & Applications
• Fusing yoke labels, shirt labels, garment label attachment

• Voltage
• 220 V AC

• Weight (kg)
• Approx. 65 kg

• Automatic Grade
• Automatic

• Capacity
• 900 pc 8hour working

• Color Management
• Other

• Computerized
• Yes

• Dimension (L*W*H)
• Custom size (approx. 120x80x140 cm)

• Ink Type
• Other

• Material
• Industrial-grade metal

• Plate Type
• Other

• Power
• 220-380 V

• Print Direction
• Other

• Printing Speed
• Up to 900 pcs/8hr

• Size
• Medium

• Type
• Label Heat Transfer Fusing Machine

• Weight (kg)
• Approx 120 kg

• Width
• Compact design

• Working Temperature
• 300 degree Celsius

• Accuracy
• 2C Temperature Control

• Color
• White/Black/Orange

• Control System
• Other, Digital Temperature and Timer Controller

• Cooling System
• Natural Air Cooling

• Dimension (L*W*H)
• Approx. 680 mm x 580 mm x 450 mm

• Drive
• Manual Platen Movement

• Features
• Shockproof Body, Energy Efficient, Emergency Stop, Easy Controls, Sturdy Design

• Frame Type
• Rigid Steel Frame

• Frequency
• 50 Hz

• Lubricating System
• Not Required/Manual Greasing

• Machine Type
• Manual/Hand Operated Fusing Press

• Model No
• SV CLASSIC

• Noise Level
• Low

• Operating Temperature
• Up to 230C (displayed 230C on panel)

• Operating Type
• Other, Semi-Automatic

• Power
• 1.5 kW (typical)

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Adjustable (Hand Wheel Type)

• Product Type
• Other, Fusing Machine

• Production Capacity
• Varies by fabric and adhesive - up to several hundred pieces/day

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Heat Press Fusing

• Usage & Applications
• Garment Fusing, Textile Industry

• Voltage
• 220-230V AC

• Weight (kg)
• Approx. 38 kg

• Automatic Grade
• Automatic

• Capacity
• 5000 pieces per day

• Color Management
• Other, Manual Adjustment

• Computerized
• No

• Dimension (L*W*H)
• Approx. 60x40x80 cm

• Ink Type
• Other, Heat Transfer Ink

• Material
• Industrial Grade Metal

• Plate Type
• Other, Flat Heating Plate

• Power
• 220-240V, 3 Phase

• Print Direction
• Other, Unidirectional

• Printing Speed
• Fast, High Output

• Size
• Compact

• Type
• Yoke Sticker Single Bed Heat Transfer Printing Machine

• Weight (kg)
• Approx. 40-50 kg

• Width
• Single Bed

• Working Temperature
• 0-250C Adjustable

• Capacity
• Up to 7 KW operation

• Color Management
• Other, Manual

• Computerized
• No

• Material
• Industrial Grade Steel

• Plate Type
• Other, Dual Bed Flat Plate

• Power
• 7 KW

• Print Direction
• Other, Bidirectional

• Printing Speed
• High-speed fusing

• Size
• Large double-bed format

• Type
• Semi Automatic Double Bed Fusing Machine

• Weight (kg)
• 80 kg

• Width
• Wide format

• Working Temperature
• 150-200C
